Overview

Design drift shows up where your team already looks: Slack. dembrandt --compare catches drift and fails the build, and this recipe posts the report as a normal message in your existing channel, no new tool to check. Works on a PR-preview drift gate or a plain production deploy workflow: you only need a committed baseline and a site URL to compare against it.

1

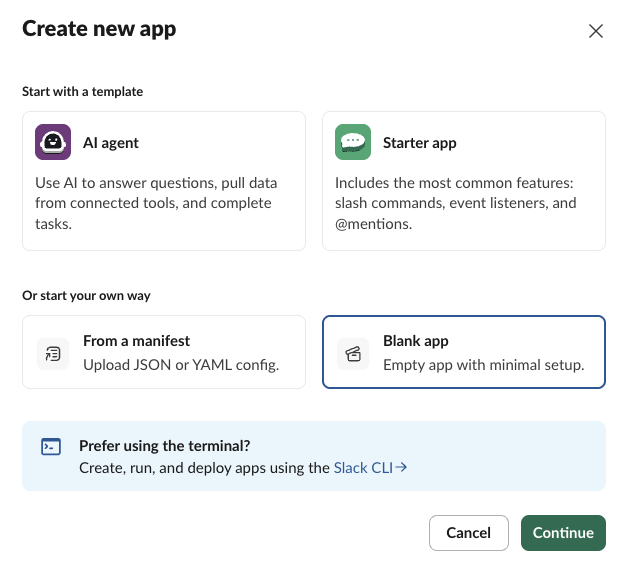

Create a new Slack app
api.slack.com/apps → Create New App → Blank app. Skip the templates. A one-way webhook needs no slash commands or listeners.
2

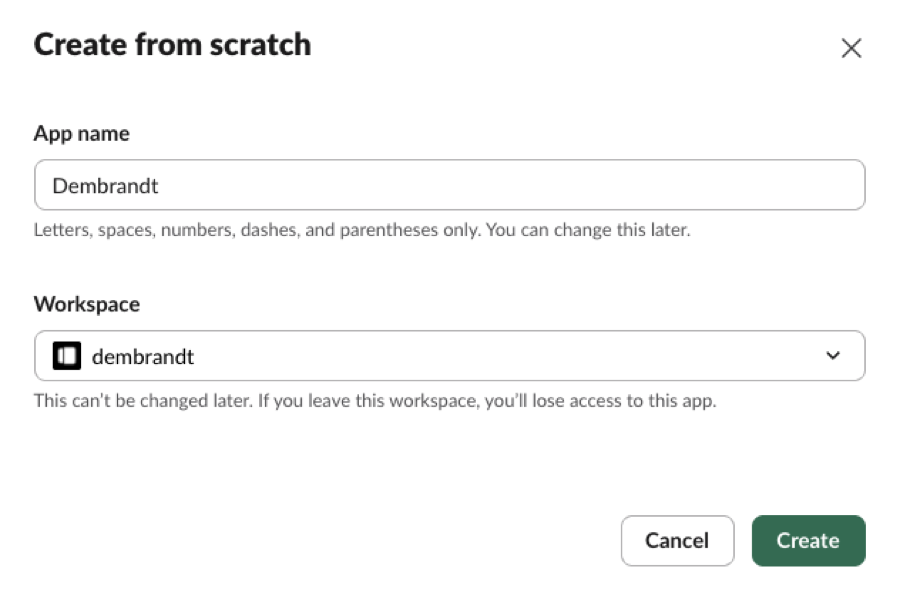

Name it and pick a workspace
Name it how you wish. Pick the workspace it should post into.
3

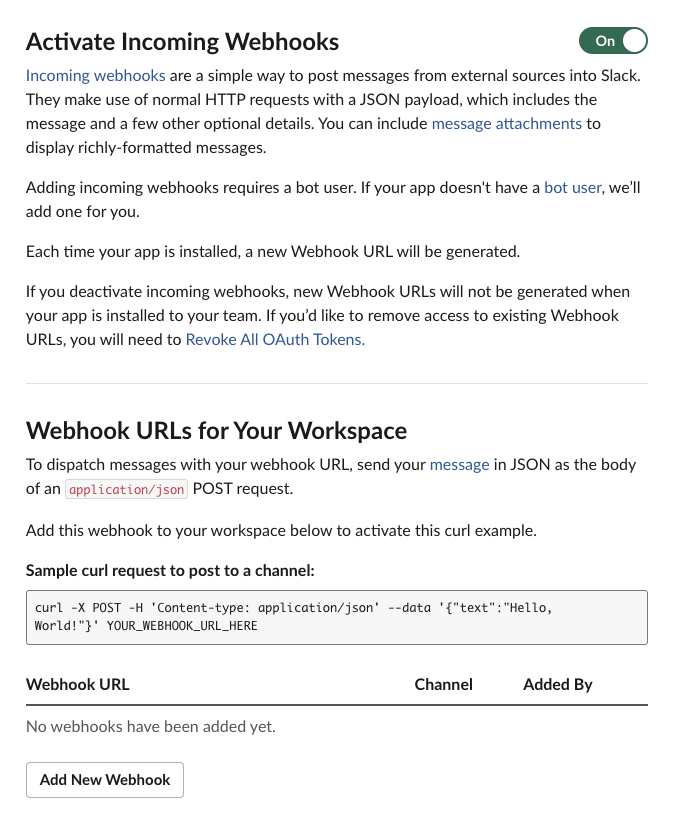

Turn on Incoming Webhooks
Open Incoming Webhooks in the app settings. Flip the toggle on, then use Add New Webhook below the curl example to continue.
4

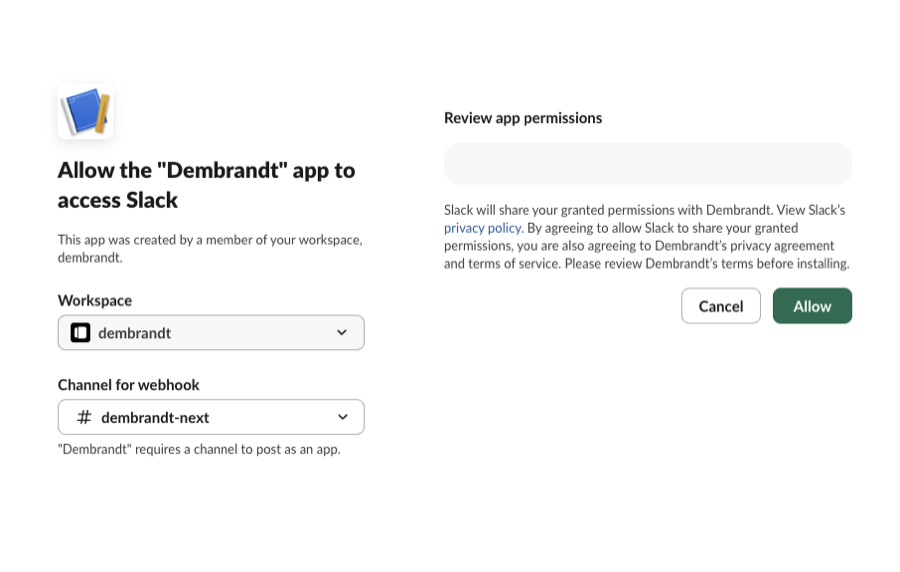

Authorize it into a channel
Pick the channel your team actually watches.
5

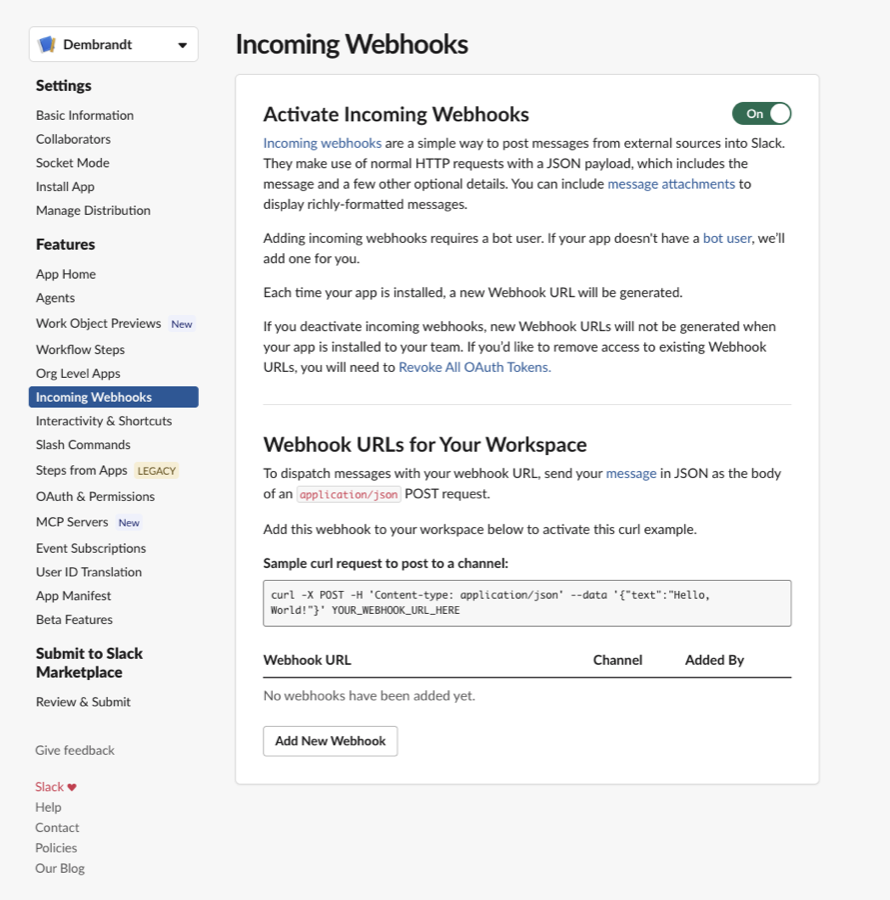

Copy the webhook URL
It's under Webhook URLs for Your Workspace. Store it as a CI secret, SLACK_DRIFT_WEBHOOK_URL.

Save this as .github/scripts/slack-drift-notify.sh in your repo (next to the drift-gate workflow from the prerequisite recipe) and make it executable: chmod +x .github/scripts/slack-drift-notify.sh

.github/scripts/slack-drift-notify.sh

set -euo pipefail

: "${SLACK_DRIFT_WEBHOOK_URL:?SLACK_DRIFT_WEBHOOK_URL is not set}"

# SITE is whatever URL your workflow just deployed and extracted a baseline

# for: $PREVIEW on a PR-preview gate, or the fixed production URL on a

# production-only workflow. baseline.json comes from the earlier compare step.

SITE="${SITE:?SITE is not set}"

ENVIRONMENT="${ENVIRONMENT:-preview}"

COMMIT="${COMMIT:-$(git rev-parse --short HEAD)}"

ICON_URL="${ICON_URL:-https://www.dembrandt.com/dembrandt-logo-just-symbol.png}"

for bin in jq npx curl; do

command -v "$bin" >/dev/null 2>&1 || { echo "$bin is required but not on PATH" >&2; exit 1; }

done

# dembrandt --compare exits 1 on drift by design (that's what makes it work

# as a CI gate elsewhere in the pipeline). Under set -e that would kill this

# script before STATUS is even read, so the exit code is captured and

# ignored here; only a genuinely unparseable report should still fail loud.

REPORT=$(npx dembrandt "$SITE" --compare baseline.json --json-only) || true

STATUS=$(echo "$REPORT" | jq -r '.drift.status')

if [ "$STATUS" = "drift" ]; then

DEPLOYED_AT=$(date -u +"%Y-%m-%dT%H:%M:%SZ")

ATTACHMENTS=$(echo "$REPORT" | jq '[.drift.changes[] | {

color: (if .kind == "added" then "#22C55E" elif .kind == "removed" then "#EA580C" else "#8A8F98" end),

text: ((if .kind == "added" then "＋" elif .kind == "removed" then "－" else "～" end) + " " + .label +

(if .before and .after then " · " + .before + " → " + .after elif .after then " · " + .after else "" end))

}]')

PAYLOAD=$(jq -n \

--argjson attachments "$ATTACHMENTS" \

--arg site "$SITE" \

--arg environment "$ENVIRONMENT" \

--arg commit "$COMMIT" \

--arg deployedAt "$DEPLOYED_AT" \

--arg iconUrl "$ICON_URL" \

username: "Dembrandt",

icon_url: $iconUrl,

text: "*Design of \($site)* · \($environment) · \($deployedAt) · \($commit)",

attachments: $attachments

}')

# One retry after a short backoff. A single Slack hiccup shouldn't fail

# the whole CI run when the drift itself was real and worth reporting.

attempt=1

while true; do

RESPONSE=$(curl -s -w '\n%{http_code}' -X POST \

-H 'Content-type: application/json' --data "$PAYLOAD" "$SLACK_DRIFT_WEBHOOK_URL")

HTTP_STATUS=$(echo "$RESPONSE" | tail -n1)

BODY=$(echo "$RESPONSE" | sed '$d')

if [ "$HTTP_STATUS" = "200" ]; then break; fi

if [ "$attempt" -ge 2 ]; then

echo "Slack notification failed (HTTP $HTTP_STATUS): $BODY" >&2

exit 1

echo "Slack notification attempt $attempt failed (HTTP $HTTP_STATUS), retrying..." >&2

attempt=$((attempt + 1))

sleep 2

done

.github/workflows/drift.yml: add this step after the existing compare step

- run: npx dembrandt "$PREVIEW" --compare baseline.json --html report.html

# New step: posts to Slack only when the step above found drift.

# SITE is $PREVIEW on a PR-preview gate; use your fixed site URL instead

# on a production-only workflow.

- name: Notify Slack on drift

env:

SLACK_DRIFT_WEBHOOK_URL: ${{ secrets.SLACK_DRIFT_WEBHOOK_URL }}

SITE: ${{ env.PREVIEW }}

run: .github/scripts/slack-drift-notify.sh

Output

One Slack message per deploy when drift is detected. Silent when the site matches baseline.
